1200kW Soundproof Natural Gas Generator

Product Categories
Starlight Industry Co.,Ltd.
Contact Now

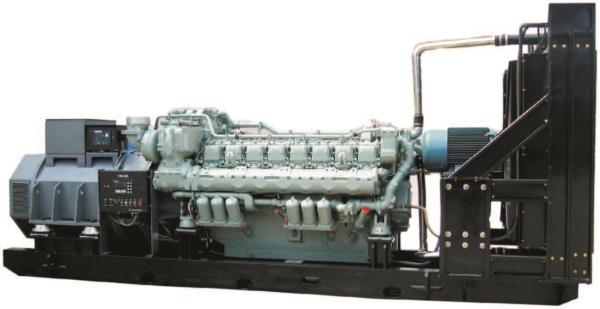

1200kW Soundproof Natural Gas Generator

  • 1
  • 2

Certification : ISO9001

Brand Name : Baudouin

Place of Origin : China

Packaging Details : Seaworthy packing.

Supply Ability : 20 Sets/month

Price : $427,077.00 - $460,699.00/Sets

Model Number : 1200kW

MOQ : 1 Set

Delivery Time : 45 days

Description : 1200kW Gas Generator

Power : 1200kW

Frequency : 50Hz

Current : 2165A

Voltage : 230V/400V

Start Mode : DC 24V Electrical Start

Engine Model : 16M33D1280NG

Engine Brand : Baudouin

Displacement : 52.3L

Rated rpm : 1500

Contact Now

1200kW Soundproof Natural Gas Generator

Technical Specification of 1200kW Soundproof Natural Gas Generator

Genset Type Open Type ■ Canopy Type □
Model EN1200NG-0.48kV
Country Place Indoor
Continuous Power/Frequency 1000kW/60Hz Backup Power/Frequency 1200kW/60Hz
Electricity Efficiency % 39.1% Electricity Efficiency (MJ/kW·h) 9.2

Dimensions

(mm)

 5700*1950*2240 Weight kg 9150
Operation Mode Single Unit□ Combined ■ Connect to Grid□ Emergency□
Ambient

1. Indoor■ Outdoor(Normal□ Sand□)

2. Ambient Temperature:-15℃-45℃

3. Working Mode:Continuous■ Backup□

4. Humidity ≤90%

5. Fuel Type: Natural Gas

Methane Value MN≥80,Fuel Heat value ≥28MJ/Nm3

Note: If natural gas supply is different than above mentioned, kindly provide exact fuel composition to us.
Working Altitude ≤1000m
Operation Noise ≤118dB(A)
Grade of Performance (GB 2820)

G2□ G3□ G4■

1. 0-250kW sudden load test,genset frequency drop≤-10% and frequency resume to normal within 6.4S.

2. 400kW-0 sudden unload test, genset frequency increase ≤6.38% and frequency resume to normal within 8.3S.

3. At generator steady state (at continuous power with steady load, power factor≥0.8), rpm fluctuate range ≤±1.5%；

Above data acquired in laboratory with standard environment. Fuel shall be standard natural gas.
Alternator Brand & Model Stanford HCI634K
Alternator Cover Standard Number SAE0 Disc Coupling Standard Number 18
Rated Power 1500KVA Backup Power /
No. Of Bearings Single Bearing■ Double Bearing□
Alternator Parameter Efficiency: 95.3% Power Factor: 0.8
Parallel Control Cabinet Brand/Model DEIF AGC222+IOM220
Switches ABB
Main Functions Automatic synchronization, load distribution, auto-protection, data communication and recording etc.

The engine rated power and rated fuel consumption rate is based on ISO3046-1 stipulated standard ambient conditions: ambient temperature 25℃, atmospheric pressure 100kPa and humidity 30%.

Power Definition and Operation Conditions for 1200kW Soundproof Natural Gas Generator

If natural gas is not as stipulated, there will be power loss for engine and life time of engine will be effected. Extra heat value won’t improve engine power. However, limited heat value will cause loss of engine power. If heat value is less than 28MJ/m³ and CH4 content is lower than 60%, the engines can’t work properly.
